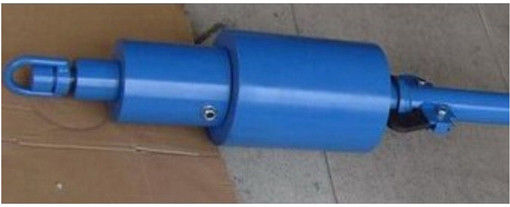

1.8m - 2.6m Automatic SPT Hammer Standard Penetration Test For Soil
Detailed Product Description:
SPT Auto Trip Hammer is produced complying with the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990.
The Automatic Trip Hammer is manufactured for complying with the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990. SPT Drive Rods and a Split Tube Sampler are connected to base of the anvil, and driven into the ground by the falling weight.
The Automatic Trip Hammer comprises a weight of 63.5 kg complete with pick-up and self-tripping mechanism that ensures that the weight has a free-fall of exactly 760 mm. The inner shaft acts as a guide that permits the weight to drop with minimal resistance and ensures that the weight strikes the anvil squarely.
The SPT anvil thread usually is processed with a 1.1/2" B.S. whitworth to fit our standard SPT rods. Adaptors to other types of drill rod can be supplied on request. The overall length of the hammer is 2.6 m extended and 1.8 m when unextended. The total weight of the hammer is 110 kg.
Automatic Trip Hammer:
The Automatic Trip Hammer is designed for driving the Split Tube Sampler and conforms to the requirements of BS 1377: Part 9: 1990 for carrying out the Standard Penetration Test (SPT) or Super Heavy Dynamic Probing (DPSH).
The hammer consists of a weight of 63.5 kg complete with pick-up and self-tripping mechanism that ensures that the weight has a free-fall of exactly 760 mm.
The inner shaft acts as a guide that permits the weight to drop with minimal resistance and ensures that the weight strikes the anvil squarely.
The drive rods screw securely into the base of the anvil, which is supplied with either a 1.1/2" B.S. whitworth or BW rod box connection.
The hammer is supplied with a safety cross bolt which secures the sliding outer sleeve to the inner guide rod when the hammer is not in use or during transport.
The overall length of the hammer is 1.8 m unextended and 2.6 m when fully extended. The total weight of the hammer is 105 kg
The following spare parts are available:
Anvil
Weight
Pawls, Springs & Axles
Guide Rod
Outer Tube Assembly
Safety Cross Bolt
Seloc Pin (to secure anvil to guide rod)
