HMLC NMLC Diamond Core Drill Bits for Roller Compacted Concrete Dam Exploration Core Drilling
1-5 pcs
MOQ
Negotiate
ราคา
HMLC NMLC Diamond Core Drill Bits for Roller Compacted Concrete Dam Exploration Core Drilling
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลพื้นฐาน
Place of Origin: Germany
ชื่อแบรนด์: ROSCHEN
ได้รับการรับรอง: ISO
Model Number: NMLC HMLC
แสงสูง:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

การชำระเงิน
Packaging Details: Caron box
Supply Ability: 10000 pcs
ข้อมูลจำเพาะ
Type: Impregnated diamond core bits
Name: NMLC Core Bits
Usage: Exploration Core Drilling
Model: Impregnated Diamond Core Bits
Machine: Wireline Core Drill
Materials: Synthetic diamonds
Series: Wireline Diamond Core Bits
Drilling: Exploration Core Drilling
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Use: Africa Mining
Applications: Copper Mining Drilling
รายละเอียดสินค้า

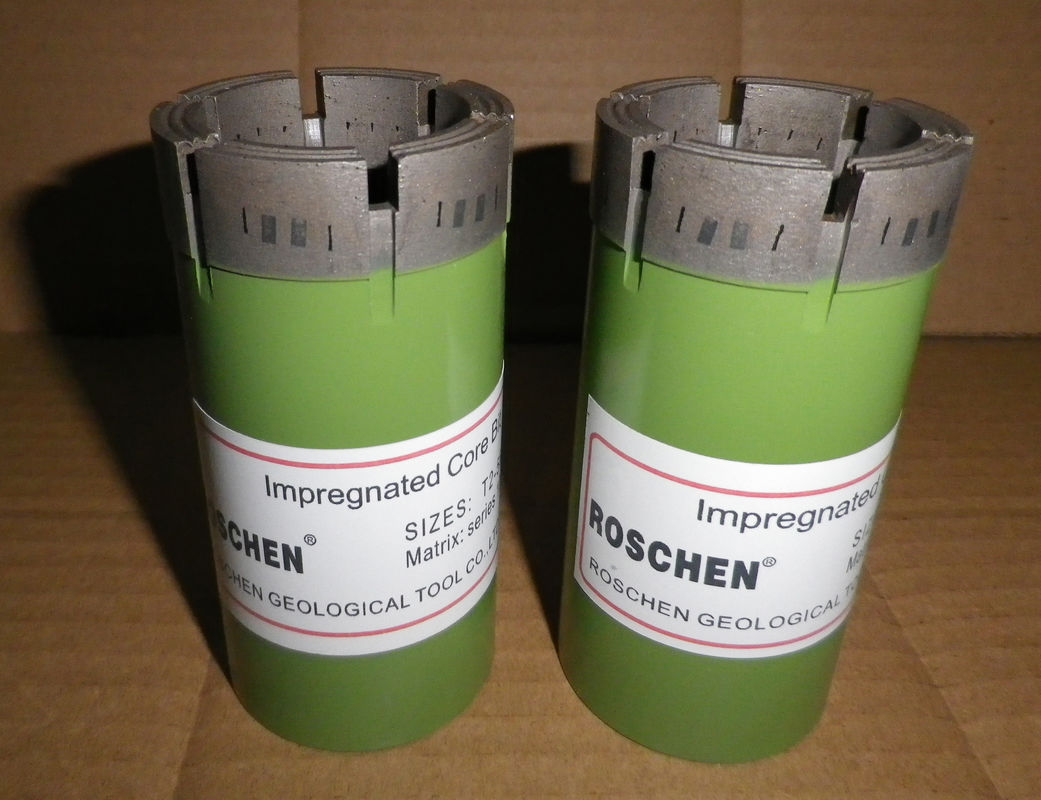

Diamond Core Drill Bit HMLC NMLC for Roller Compacted Concrete Dam Exploration Core Drilling

HMLC NMLC Diamond Core Drill Bit for Roller Compacted Concrete Dam Exploration Core Drilling

Roller compacted concrete dam(RCCD)



HMLC NMLC Surface-Set Diamond Core Drill Bit for Roller Compacted Concrete Dam Exploration Core Drilling








Notice:

To select the right bit:



1) Please assess the speed and power of your drill for the size and depths of the holes
2) Please assess ground conditions (such as Stone / Granite / Concrete ) and down-hole conditions.



Size:
1) ROSCHEN have all standard size of Diamond Core Drill Bits (Surface-Set) .
3) Different customers have different requests, we can make customize Diamond Core Drill Bits.



Crown Height:
ROSCHEN offers crown impregnated depths of 9mm, 12mm, and 16mm Diamond Core Drill Bits. The taller crown heights can improve bit life time, have better stability and performance, reduce vibrations.



Specially about Waterways:
Diamond impregnated bits are suit for various waterways. Diamond Core Drill Bits suit better flushing in various ground conditions and drilling systems.



Threads:
1) Standard WL threads
2) As well as thread types required by clients are available.


ROSCHEN offers crown impregnated depths of 9mm, 12mm, and 16mm Diamond Core Drill Bits. And also can supply different kinds of diamond core bits in different size, which are used in shale, sandstone, limestone, marble, dolomite, schist, granite, quartz, ironstone, chert, abrasive rock etc. Including impregnated diamond core bit, surface-set diamond bit, reaming shells, casing bit, casing shoe bit, core lifter, core lifter case, core barrel assembly, inner tube head assembly, over shot, hoist plugs, drill rod, casing pipe etc.




Advantages:

Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.



Size Available:


"WL" series: AWL, BWL, NWL, HWL, PWL/AWLTK, BWLTK, BWL3, NWL2, NWL3, NWLTT, HWL3, HWLTT, PWL3, PWLTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT
WM series: EWM, AWM, BWM, NWM, HWM
WG series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, N




Specifications:



Size Outside Diameter Inside Diameter
inch mm inch mm
AWL 1.880/1.870 47.75/47.50 1.607/1.057 27.10/26.85
BWL 2.350/2.340 59.69/59.44 1.438/1.428 36.52/36.27
NWL 2.970/2.960 75.44/75.19 1.880/1.870 47.75/47.50
HWL 3.770/3.755 95.76/95.38 2.505/2.495 63.63/63.38
PWL 4.815/4.795 122.30/121.80 3.350/3.340 85.09/84.84






For more information please contact:




ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED


Skype: ROSCHEN.TOOL , ROSCHEN_GROUP


WeChat: +86-137 6419 5009 ; +86-135 8585 5390


WhatsApp: +86-137 6419 5009 ; +86-135 8585 5390


Email: roschen@roschen.com ; roschen@roschen.net


Website: http://www.roschen.net ; http://www.roschen.cn

http://www.roschen.com ; http://www.roschengroup.com
