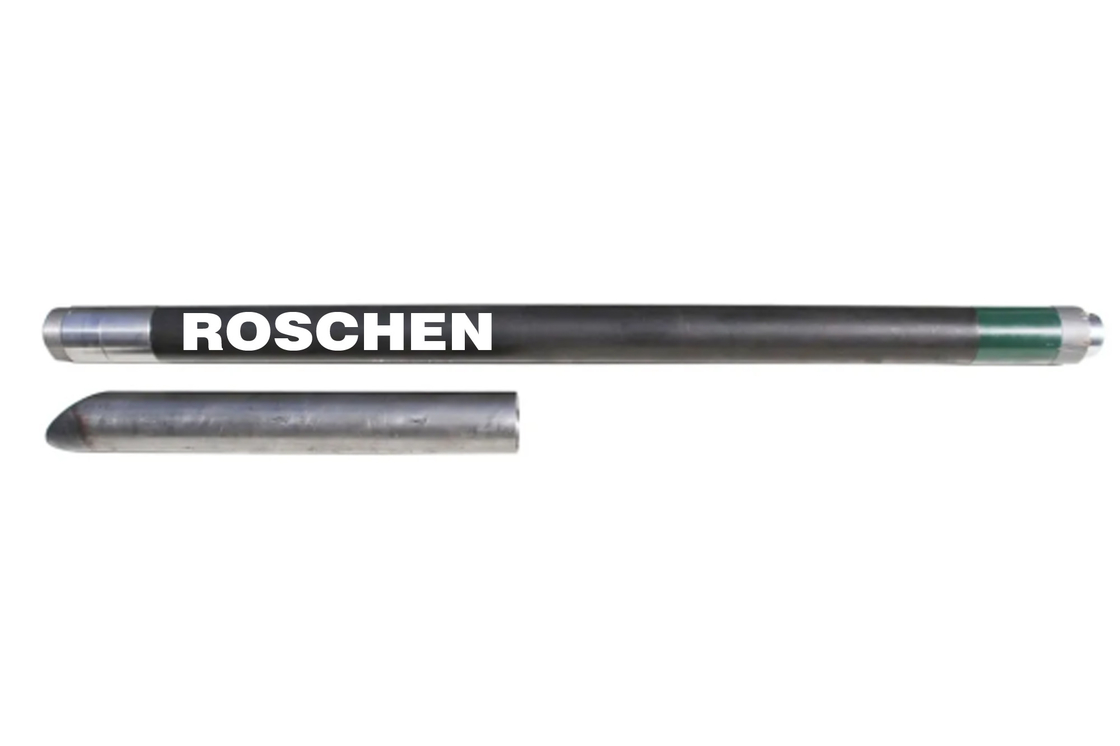

Mazier M101 Core Barrel for Core Drill
The Mazier M101 Core Barrel is designed for obtaining undisturbed core samples in very soft soils.
Key features include:
Spring-loaded inner tube assembly that protects the core from water flush when drilling in soft formations.
PVC coreliner inside the inner tube to retain the core, along with a "basket" catcher to prevent soft materials from slipping out.
ROSCHEN manufacture differenct types of the core barrels with high quality.
Size Available:
B76 core barrel, B86 core barrle, B101 core barrel, B131 core barrel, B146 core barrel
BQ core barrel NQ core barrel, HQ core barrel PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel
TT-46 core barrel TT56 core barrel
T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel
T6-76 core barrel T6-86 core barrel T6-101 core barrel T6-116 core barrel T6-131 core barrel T6-131 core barrel
T6S-76, T6S-86, T6s-101, T6s-131, T6S-146 core barrel
NMLC core barrel, HMLC core barrel
HWF core barrel, PWF core barrel
NWG core barrel, HWG core barrel
LTK48 core barrel
Mazier core barrel
412 F core barrel
M101 core barrel
Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 91...
Wireline drilling is the special method of removing the core. When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time. With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.
Mazier Core Barrel Specifications | ||
Size | Hole Dia.(mm) | Core Dia.(mm) |
86 | 86 | 62 |
101 | 101 | 71.5 |
116 | 116 | 83 |
131 | 131 | 99 |
146 | 146 | 113 |
Application:
It suitable for clay, mudstone, sandstone and soft rock
formation sampling.
The feature of Mazier core barrel is high core recovery
and small sample disturbance.
