Q Series Impregnated Diamond Core Drill Bits for Mineral Exploration Core Drilling

1-5 pcs
MOQ
Negotiate
ราคา
Q Series Impregnated Diamond Core Drill Bits for Mineral Exploration Core Drilling
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
Name: Diamond Core Drill Bits
Origin: China core drill bit
China: China diamond drill bits
Suppliers: diamond core drill suppliers
New: 2017 diamond core drill bit
Diamond: diamond core bit
Drilling: Exploration Core Drilling
Type: diamond drill bits for glass
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drills: Wireline Core Drilling
Mining: Australia Mining
Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling
Usage: Africa Mining
Applications: Copper Mining Drilling
แสงสูง:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

ข้อมูลพื้นฐาน
สถานที่กำเนิด: Germany
ชื่อแบรนด์: ROSCHEN
ได้รับการรับรอง: ISO
หมายเลขรุ่น: BQ NQ HQ PQ
การชำระเงิน
รายละเอียดการบรรจุ: Cartons
สามารถในการผลิต: 1000 pcs
รายละเอียดสินค้า

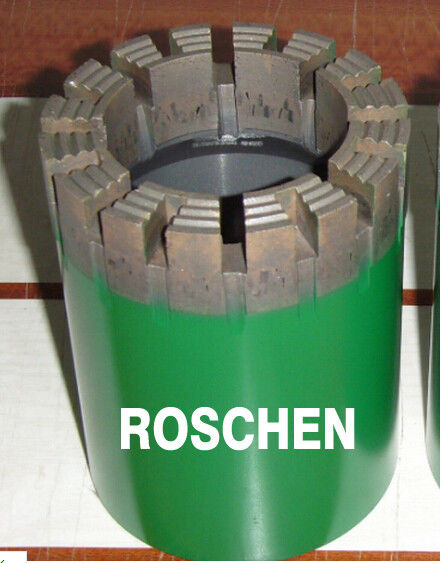

Q Series Impregnated Diamond Core Drill Bit for Mineral Exploration Core Drilling


Basic Information:

Model.: AQ BQ NQ HQ PQ B T TT T2 T6 T6S LTK WG WF NMLC HMLC
Type: Core Drilling Rig
Use: Core Drill, Prospecting, Exploration
Usage: Coal, Ore, Water Well, Core Drill
Shape: Round
Specification: DCDMA, CDDA, ISO
HS Code: 8207191000
Customized: Customized
Material: Diamond
Matrix Height: 14mm
Condition: New
Trademark: ROSCHEN







Product Description:

1. Whole Q series and T series drilling sizes (B,N,P,H).
2. Various waterways design.
3. Longer bit life and high speed performance.
4. Cost effictive;








Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.


Crown Height:
We could offers crown impreg depths of 9mm, 12mm, 14mm, 16mm, 25mm. The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.


Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

The choice of the diamond bit crown shape:


W Profile
Suitable for drilling hard dense formations with high penetration rate.


Semi-Round Profile
Impregnated bits with this profile are recommended for use in highly fractured formations with good drilling stability. Surface set bits of this style have a long bit life and the matrix is not easy to be damaged.


Flat Profile
It's suitable for various rocks, often used in impregnated casing bits, casing shoes as well as the bits with very hard matrices(e.g. F1, F2).


Cross Profile
It's especially designed for ultra-hard formations, such as granite (hardness 8-9), ganister, quartzite, siliceous limestone, chert, etc.


Multi-Step Profile
Multi-Step type impregnated bit are suitable for soft to medium hard formations and alternating hard-soft formations. With very good drilling stability, it makes the borehole not liable to deflection and the penetration fast. This profile is also often adopted in thick-kerf surface set core bits, with good drilling stability and fast penetration.


Shaped Gear Profile
It's suitable for competent formations, and can expand the flushing ways and improve the penetration rate.


Face Discharge
It's suitable for sedimentary and metamorphic formations, or the formations including with lots of mineral powders, this design can protect the core from flushing and improve the getting effciency of core samples.



Sizes Available:
Diamond core drill bits



"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
and all other standard CDDA, DCDMA, Crealius, and ISO sizes.




Dimensions of Core Bits:

A-Gauge Core Bits
Size Outside diameter Inside diameter
inch mm inch mm
AQ 1.880/1.870 47.75/47.50 1.607/1.057 27.10/26.85
AQ-RSG 1.895/1.885 48.13/47.88 1.067/1.057 27.10/26.85
AWG,AX 1.880/1.870 47.75/47.50 1.190/1.180 30.23/29.97
AWM 1.880/1.870 47.75/47.50 1.190/1.180 30.23/29.97
AWT 1.880/1.870 47.75/47.50 1.286/1.276 32.66/32.41
LTK48 1.880/1.870 47.75/47.50 1.394/1.384 35.40/35.15
B-Gauge Core Bits
BQ 2.350/2.340 59.69/59.44 1.438/1.428 36.52/36.27
BQ-RSG 2.365/2.355 60.77/59.82 1.438/1.428 36.52/36.27
BQ-2.400 2.045/2.395 61.09/60.83 1.438/1.428 36.52/36.27
BQ3 2.350/2.340 59.69/59.44 1.325/1.315 33.65/33.40
BWG,BX 2.350/2.340 59.69/59.44 1.660/1.650 42.16/41.91
BWM 2.350/2.340 59.69/59.44 1.660/1.650 42.16/41.91
BWT 2.350/2.340 59.69/59.44 1.755/1.745 44.58/44.32
LTK60 2.350/2.340 59.69/59.44 1.742/1.732 44.25/44.00
TBW 2.350/2.340 59.69/59.44 1.785/1.775 45.34/45.09
N-Gauge Core Bits
NQ 2.970/2.960 75.44/75.19 1.880/1.870 47.75/47.50
NQ-RSG 2.985/2.975 75.82/75.57 1.880/1.870 47.75/47.50
NQ-3.032 3.037/3.027 77.14/76.89 1.880/1.870 47.75/47.50
NQ2 2.970/2.960 75.44/75.19 2.000/1.990 50.80/50.55
NQ2-RSG 2.985/2.975 75.82/75.57 2.000/1.990 50.80/50.55
NQ3,NQTT 2.970/2.960 75.44/75.19 1.780/1.770 45.21/44.96
NQ3-RSG 2.985/2.975 75.82/75.57 1.780/1.770 45.21/44.96
NQ3-3.032 3.037/3.027 77.14/76.89 1.780/1.770 45.21/44.96
LMLC 2.970/2.960 75.44/75.19 2.052/2.042 52.12/51.87
NWG, NX 2.970/2.960 75.44/75.19 2.160/2.150 54.86/54.61
NWM 2.970/2.960 75.44/75.19 2.160/2.150 54.86/54.61
NWT 2.970/2.960 75.44/75.19 2.318/2.308 58.87/58.62
TNW 2.970/2.960 75.44/75.19 2.394/2.384 60.80/60.55
H-Gauge Core Bits
HQ 3.770/3.755 95.76/95.38 2.505/2.495 63.63/63.38
HQ-RSG 3.790/3.755 96.27/95.89 2.505/2.495 63.63/63.38
HQ-3.830 3.840/3.825 97.54/97.16 2.505/2.495 63.63/63.38
HQ-3.895 3.897/3.882 98.98/98.60 2.505/2.495 63.63/63.38
HQ3, HQTT 3.770/3.755 95.76/95.38 2.411/2.401 61.24/60.99
HQ3-RSG 3.790/3.755 96.27/95.89 2.411/2.401 61.24/60.99
HQ3-3.830 3.840/3.825 97.54/97.16 2.411/2.401 61.24/60.99
HQ3-3.895 3.897/3.882 98.98/98.60 2.411/2.401 61.24/60.99
HMLC 3.897/3.882 98.98/98.60 2.505/2.495 63.63/63.38
HWF-Long 3.912/3.897 99.36/98.98 3.005/2.995 76.33/76.08
HWF-Short 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWG, HX 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWM 3.897/3.882 98.98/98.60 3.005/2.995 76.33/76.08
HWT 3.897/3.882 98.98/98.60 3.192/3.182 81.08/8082
P-Gauge Core Bits
PQ 4.815/4.795 122.30/121.80 3.350/3.340 85.09/84.84
PQ3 4.815/4.795 122.30/121.80 3.275/3.265 83.18/82.93
PWF-Long 4.755/4.740 120.78/120.40 3.635/3.620 92.33/91.95
PWF-Short 4.735/4.715 120.27/119.76 3.635/3.620 92.33/91.95
S-Gauge Core Bits
SWF-Long 5.755/5.740 146.18/145.80 4.447/4.432 112.95/112.57
SWF-Short 5.735/5.715 145.67/145.16 4.447/4.432 112.95/112.57
U-Gauge Core Bits
UWF-Long 6.880/6.860 174.75/174.24 5.515/5.495 140.08/139.57
UWF-Short 6.855/6.825 174.12/173.36 5.515/5.495 140.08/139.57
Z-Gauge Core Bits
ZWF-Long 7.880/7.860 200.15/199.64 6.515/6.495 165.48/164.97
ZWF-Short 7.855/7.825 199.52/198.76 6.515/6.495 165.48/164.97
T, TT, T2 & TB Series Metric Core Bits
T36 1.422/1.412 36.12/35.87 0.859/0.849 21.82/21.57
TT46 1.818/1.808 46.18/45.92 1.394/1.384 35.40/35.15
T2-46 1.818/1.808 46.18/45.92 1.253/1.243 31.82/31.57
TB56 2.22 56.3 1.64 41.7
TT56 2.210/2.200 56.13/55.88 1.788/1.778 45.41/45.16
T2-56 2.210/2.200 56.13/55.88 1.647/1.637 41.83/41.58
T2-66 2.603/2.593 66.12/65.87 2.040/2.030 51.81/51.56
T2-76 2.997/2.987 76.12/75.87 2.434/2.424 61.82/61.57
T2-76 Coreline 2.997/2.987 76.12/75.87 2.288/2.278 58.12/57.87
T2-86 3.391/3.381 86.13/85.88 2.828/2.818 71.83/71.58
T2-86 Coreline 3.391/3.381 86.13/85.88 2.682/2.672 68.13/67.88
T2-101 3.981/3.971 101.12/100.87 3.300/3.290 83.82/83.57
T2-101 Coreline 3.971/3.971 101.12/100.87 3.155/3.145 80.13/79.88
T6 Series Metric Core Bits
T6-76 2.997/2.987 76.12/75.87 2.249/2.239 57.12/56.87
T6-86 3.391/3.381 86.13/85.88 2.643/2.633 67.13/66.88
T6-101 3.981/3.971 101.12/100.87 3.115/3.105 79.12/78.87
T6-116 4.575/4.560 116.20/115.82 3.667/3.657 93.14/92.89
T6-131 5.165/5.150 131.19/130.81 4.257/4.247 108.13/107.88
T6-146 5.755/5.740 146.18/145.8 4.847/4.837 123.11/122.86
T6S Series Metric Core Bits
T6S-76 3.009/2.999 76.43/76.18 1.883/1.873 47.83/47.58
T6S-86 3.403/3.393 86.43/86.18 2.277/2.267 57.83/57.58
T6S-101 3.993/3.983 101.43/101.18 2.828/2.818 71.83/71.58
T6S-116 4.586/4.571 116.48/116.10 3.379/3.369 85.83/85.58
T6S-131 5.177/5.162 131.48/131.10 3.970/3.960 100.83/100.58
T6S-146 5.767/5.752 146.48/146.10 4.560/4.550 115.83/115.58
B Series (ISO3552-1) Metric Core Bits
B36 1.422/1.412 36.12/35.87 0.859/0.849 21.82/21.57
B46 1.818/1.808 46.18/45.92 1.253/1.243 31.82/31.57
B56 2.210/2.200 56.13/55.88 1.647/1.637 41.83/41.58
B66 2.603/2.593 66.12/65.87 2.040/2.030 51.81/51.56
B76 2.997/2.987 76.12/75.87 2.434/2.424 61.82/61.57
B86 3.391/3.381 86.13/85.88 2.828/2.818 71.83/71.58
B101 3.981/3.971 101.12/100.87 3.418/3.408 86.82/86.57
B116 4.575/4.560 116.20/115.82 4.009/3.999 101.83/101.58
B131 5.165/5.150 131.19/130.81 4.599/4.589 116.82/116.57
B146 5.755/5.740 146.18/145.80 5.190/5.180 131.82/131.57






Further exploration drilling products information, please don't hesitate to contact us.
