8 inch Mission 80 DTH Hammer for Well Drilling
8 inch Mission 80 DTH Hammer for Well Drilling High Speed Penetration

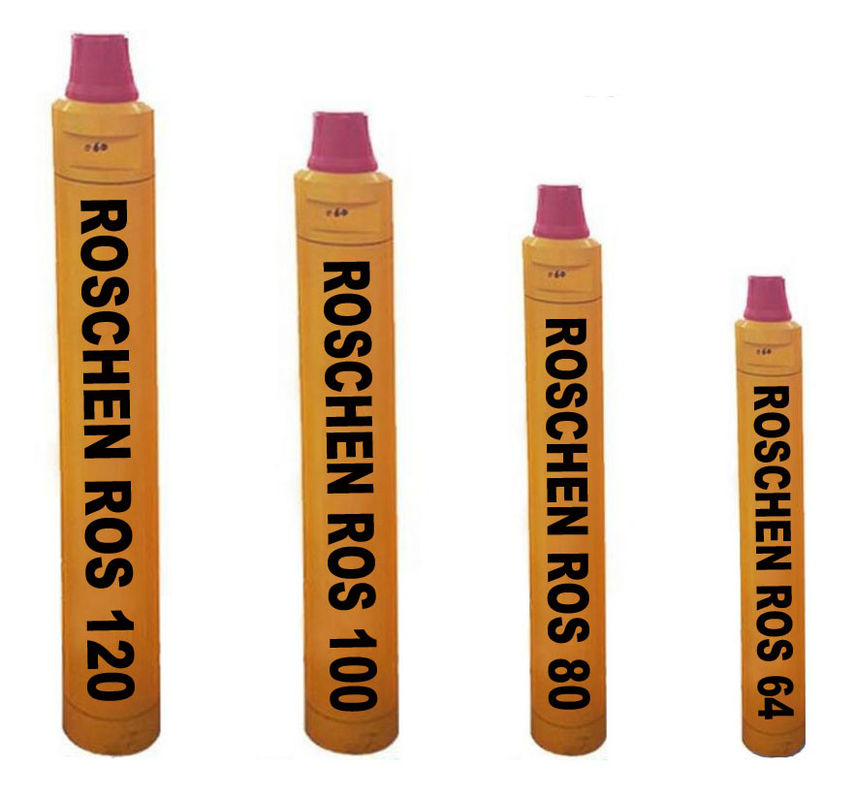

It is a kind of high air pressure DTH Hammer without foot valve and without valve, our newest design. It is also one of the most advanced DTH Hammers in the world.
We manufacture DTH Hammers in different sizes ranging from 1 to 12. These hammers are made corresponding to Drilling Bits to carry out prevalent objectives. These hammers are used in various down the hole operations like bench Drilling. These are valve less hammers with optimized air cycle frequency. These are heavy duty hammers that well at greater depths demanding less air usage, delivering minimum performance loss.
We offer IR hammer, DHD3.5, DHD340a, DHD360, DHD380,COP and QL hammer.The optimum range of hole size for blast drilling with DTH is 90mm to 254mm,smaller blast holes are generally drilled using top hammer, and larger holes generally use rotary machines. Our hammer like COP and QL are known fort heir reliability and longevity.
Specifications:
Specification: | External Dia.(mm) | Connection thread | Hole range (mm) |
Low air pressure DTH hammer CIR type | 50~180 | CIR | 55~200 |
Middle air pressure BR & COP type | 70~110 | 85~115 | |
3 inch DTH hammer | 81 | API 2 3/8” Reg | 90~110 |
DHD3.5,COP34,COP32,QL30,M30,IR3.5 | |||
4 inch DTH hammer | 99 | API 2 3/8” Reg | 110~150 |
DHD340,COP44,M40,SD4,QL40 | |||
5 inch DTH hammer | 125 | API 2 3/8” or API 3 1/2” Reg | 135~165 |
DHD350,COP54,M50,SD5,QL50 | |||
6 inch DTH hammer | 142 | API 3 1/2” Reg | 152~216 |
DHD360,M60,SD6,QL60,COP64 | |||
8 inch DTH hammer | 180 | API 4 1/2” Reg | 203~305 |
DHD380,COP84,M80,SD8,QL80 | |||
10, 12inch DTH Hammer | 275 | API 6 5/8 Reg PIN | 305-445 |
SD10, DHD1120,NUMA 100, NUMA 125 | |||
15 inch DTH Hammer | 330 | API 7 5/8’’ REG | 350-660 |
DHD1150, SD15,NUMA125 |
ROSCHEN DTH Hammers Specifications | |||||||
Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
1.0Mpa | 4m3/min | ||||||
1.4Mpa | 5m3/min | ||||||
3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
COP32/COP34 | |||||||
M30 | 1.5Mpa | 9m3/min | |||||
4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8Mpa | 10m3/min | |||||
M40 | 2.4Mpa | 15m3/min | |||||
5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
COP54 | |||||||
QL50 | |||||||
SD5 | 1.8Mpa | 15m3/min | |||||
M50 | 2.4Mpa | 23m3/min | |||||
6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8Mpa | 20m3/min | |||||
M60 | 2.4Mpa | 28.5m3/min | |||||
8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
COP84 | |||||||
QL80 | 1.8Mpa | 26m3/min | |||||
SD8 | 2.4Mpa | 34m3/min | |||||
M80/M85 | |||||||
10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
Numa100 | 1.8Mpa | 40m3/min | |||||
ROS 100 | 2.4Mpa | 55m3/min | |||||
12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
SD12 | 1.8Mpa | 56m3/min | |||||
Numa120 | 2.4Mpa | 78m3/min | |||||
Notes: Any special size of DTH bits will be available by requests. | |||||||
Metzke, Remet thread is available! |
Products Features:
1-12 inch middle-low/high air pressure DTH hammer & bit
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit
Shank adapter, coupling sleeves and all kinds of adapters
Advantages:
Compared with the oversea brands, our advantages are bellowing:
1. Our products can match over 95% against the original products
2. Price are competitive against the famous brands and best quality against the small factory
FAQ
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
